AsctImpl Class Reference

#include <AsctImpl.hpp>

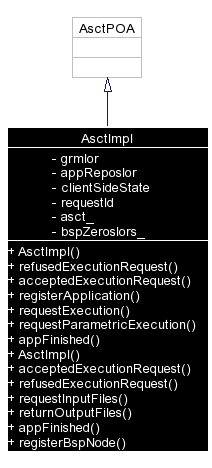

Inheritance diagram for AsctImpl:

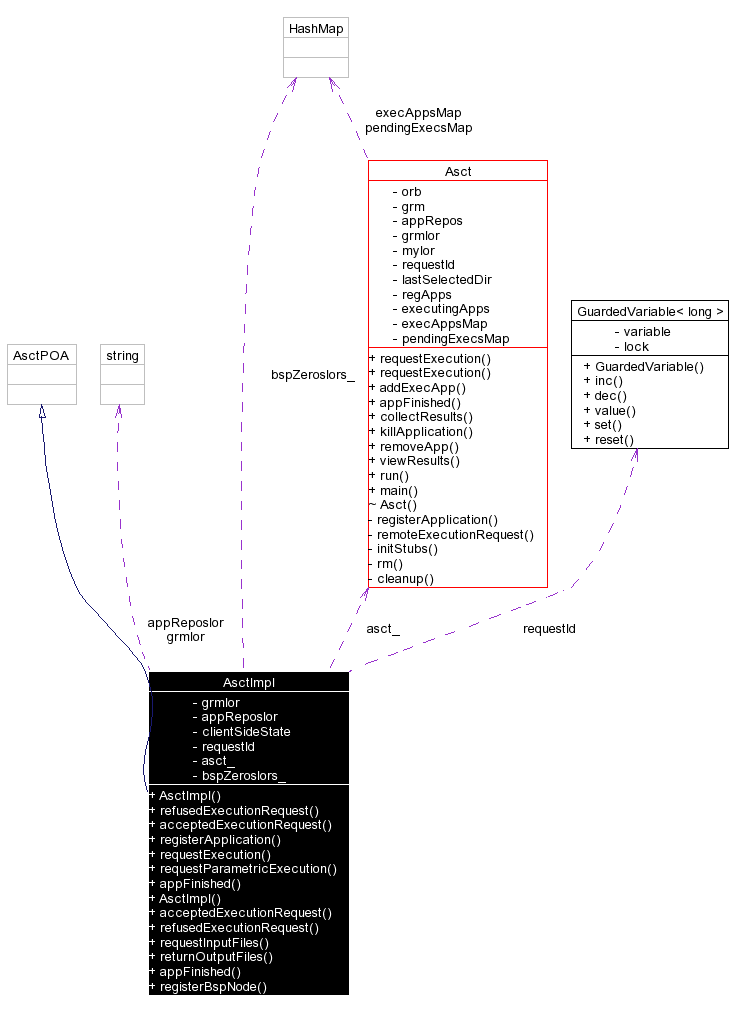

[legend]Collaboration diagram for AsctImpl:

[legend]List of all members.

Public Member Functions
	AsctImpl (const Config &config)
void	refusedExecutionRequest (std::string requestId)
void	acceptedExecutionRequest (OfferSpecs offSpecs)
string	registerApplication (string appPath)
void	requestExecution (ExecutionSpecs execSpecs)
void	requestParametricExecution (ParametricExecution parExecSpecs)
void	appFinished (const string &appId)
	AsctImpl (Asct asct)
void	acceptedExecutionRequest (OfferSpecs offSpecs)
void	refusedExecutionRequest (String requestId)
byte[]	requestInputFiles (String paths)
void	returnOutputFiles (String appId, FileStruct[] fileSequence)
void	appFinished (String appId)
BspInfo	registerBspNode (String appId, String bspProxyIor)
Private Attributes
std::string	grmIor
std::string	appReposIor
lua_State *	clientSideState
GuardedVariable< long >	requestId
Asct	asct_
HashMap	bspZerosIors_

---

Detailed Description

AsctImpl - Implementation of the ASCT IDL interface.

AsctImpl implements ASCT interface. It also hosts methods for setting up the server side of the ASCT service (tasks such as ORB instantiation, proxy creation, etc). Finally, ASCT acts as a gatweway for remote execution requests, offering an interface that allows one to place execution requests to the GRM.

ASCT is a sigleton, because we are using threads and the only way to launch threads are via static methods. We could use other mechanisms to do that, but since we don't need more than one ASCT object, this solution is ok for now.

Author:

Andrei Goldchleger

---

Constructor & Destructor Documentation

AsctImpl::AsctImpl (  const Config &  config  )

Constructor Parameters: config  - a configuration object.

AsctImpl::AsctImpl (  Asct  asct  )  [inline]

---

Member Function Documentation

void AsctImpl::acceptedExecutionRequest (  OfferSpecs  offSpecs  )  [inline]

Receive confirmation from a remote LRM that accepted our execution request Analog to 2k's "ACK" Parameters: offSpecs  - Offer information, see( See also: types::offSpecs)

void AsctImpl::acceptedExecutionRequest (  OfferSpecs  offSpecs  )

Called by a GRM to notify that one of our remote execution requests was accepted by a remote LRM. Parameters: offSpecs  - Information about the remote LRM that accepted our request See also: OfferSpecs

void AsctImpl::appFinished (  String  appId  )  [inline]

void AsctImpl::appFinished (  const string &  appId  )

Gets noticifation from a LRM that a given app has finished execution.

void AsctImpl::refusedExecutionRequest (  String  requestId  )  [inline]

Receive notice that one of our queries was rejected by all other LRMs (Though we can retry again if we so wish) Analog to 2k's "NACK" Parameters: requestId  - Id of the refused request

void AsctImpl::refusedExecutionRequest (  std::string  requestId  )

Called by a GRM to indicate that one of our remote execution requests wasn't accepted by any other LRM. In this case, we can take a variety of actions, such as retry the request or notify the user who submitted it. Parameters: requestId  - The id of the refused request

string AsctImpl::registerApplication (  string  appPath  )

Register an application on the ApplicationRepository Parameters: appPath  - A Valid patch to the applicatios Returns: an application id to be used in execution requests

BspInfo AsctImpl::registerBspNode (  String  appId, String  bspProxyIor )  [inline]

void AsctImpl::requestExecution (  ExecutionSpecs  execSpecs  )

Request execution Parameters: execSpecs  - describes the execution characteristics.

byte [] AsctImpl::requestInputFiles (  String  paths  )  [inline]

Receive request for files needed to allow the remote execution of a request made by this ASCT Parameters: paths  - the file path in the host where this ASCT is running Returns: all files needed by the remote execution Todo: : Signal error condition to caller(Raise CORBA exception) : Signal error condition to caller(Raise CORBA exception)

void AsctImpl::requestParametricExecution (  ParametricExecution  parExecSpecs  )

Request parametric execution Parameters: parExecSpecs  - describes the parametric execution characteristics.

void AsctImpl::returnOutputFiles (  String  appId, FileStruct[]  fileSequence )  [inline]

---

Member Data Documentation

std::string AsctImpl::appReposIor [private]

Application Repository's IOR

Asct AsctImpl::asct_ [private]

Reference to the gui

HashMap AsctImpl::bspZerosIors_ [private]

struct lua_State* AsctImpl::clientSideState [private]

lua_state representing the client side

std::string AsctImpl::grmIor [private]

GRM's IOR

GuardedVariable<long> AsctImpl::requestId [private]

identifies an execution request. Each request has an unique ID

---

The documentation for this class was generated from the following files:

• AsctImpl.hpp
• AsctImpl.java
• AsctImpl.cpp

---
