BspProxyImpl Class Reference

#include <BspProxyImpl.hpp>

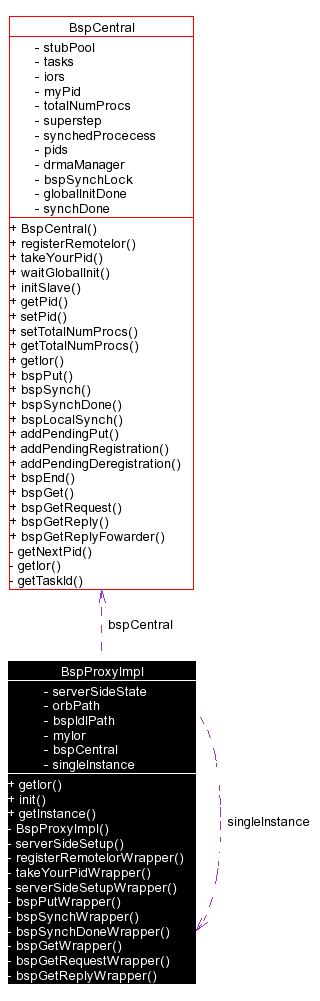

Collaboration diagram for BspProxyImpl:

[legend]List of all members.

Public Member Functions
const string &	getIor ()
Static Public Member Functions
BspProxyImpl &	init (BspCentral *bspCentral_, const Config &config)
BspProxyImpl &	getInstance ()
Private Member Functions
	BspProxyImpl (BspCentral *bspCentral_, const Config &config)
void	serverSideSetup ()
Static Private Member Functions
int	registerRemoteIorWrapper (struct lua_State *state)
int	takeYourPidWrapper (struct lua_State *state)
void *	serverSideSetupWrapper (void *ptr)
int	bspPutWrapper (struct lua_State *state)
int	bspSynchWrapper (struct lua_State *state)
int	bspSynchDoneWrapper (struct lua_State *state)
int	bspGetWrapper (struct lua_State *state)
int	bspGetRequestWrapper (struct lua_State *state)
int	bspGetReplyWrapper (struct lua_State *state)
Private Attributes
lua_State *	serverSideState
string	orbPath
string	bspIdlPath
string	myIor
BspCentral *	bspCentral
Static Private Attributes
BspProxyImpl *	singleInstance = NULL

---

Detailed Description

BspProxyImpl - implementation of the BspProxy IDL Interface

A BspProxy represents each of the BSP tasks and allows communication betwaeen them, This class handles only the communications' details. Functionality id delecated to the BspCentral class.

Author:

Andrei Goldchleger

Date:

november/2003

---

Constructor & Destructor Documentation

BspProxyImpl::BspProxyImpl (  BspCentral *  bspCentral_, const Config &  config )  [private]

Private constructor for singleton Parameters: bspCentral_  - pointer to a BspCentral config  - for configuratios such as ORB & IDL path

---

Member Function Documentation

int BspProxyImpl::bspGetReplyWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspGetReply' on the single instance.

int BspProxyImpl::bspGetRequestWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspGetRequest' on the single instance.

int BspProxyImpl::bspGetWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspGet' on the single instance.

int BspProxyImpl::bspPutWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspPut' on the single instance.

int BspProxyImpl::bspSynchDoneWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspSynchDone' on the single instance.

int BspProxyImpl::bspSynchWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'bspSynch' on the single instance.

BspProxyImpl & BspProxyImpl::getInstance (   )  [static]

Returns a reference to the single instance

const string& BspProxyImpl::getIor (   )  [inline]

Returns the IOR of this BspProxy

BspProxyImpl & BspProxyImpl::init (  BspCentral *  bspCentral_, const Config &  config )  [static]

Initializes the single instance Parameters: bspCentral_  - pointer to a BspCentral instance, so that BspProxyImpl can forward calls to it config  - for configuratios such as ORB & IDL path

int BspProxyImpl::registerRemoteIorWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'registerRemoteIor' on the single instance.

void BspProxyImpl::serverSideSetup (   )  [private]

Launches the request handler loop.

void * BspProxyImpl::serverSideSetupWrapper (  void *  ptr  )  [static, private]

Launches the request handler loop. Pthreads need a function pointer, so we need this static wrapper

int BspProxyImpl::takeYourPidWrapper (  struct lua_State *  state  )  [static, private]

Wrapper called by Lua code in order to let us call 'takeYourPid' on the single instance.

---

Member Data Documentation

BspCentral* BspProxyImpl::bspCentral [private]

pointer to a BspCentral

string BspProxyImpl::bspIdlPath [private]

path to the BspLib IDL

string BspProxyImpl::myIor [private]

ior of this BspProxyImpl

string BspProxyImpl::orbPath [private]

O2 directory

struct lua_State* BspProxyImpl::serverSideState [private]

lua_state representing the server side

BspProxyImpl * BspProxyImpl::singleInstance = NULL [static, private]

singleton

---

The documentation for this class was generated from the following files:

• BspProxyImpl.hpp
• BspProxyImpl.cpp

---
